Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Successfully Installing a Car Hoist in Your Garage

If you are considering the installation of a car hoist in your garage, it is imperative to ensure that your concrete floor meets the necessary specifications. A robust and stable foundation is not only vital for the effective functionality of the hoist but also essential for guaranteeing the safety of your vehicles and everyone operating the equipment. Adequate preparation and strict adherence to guidelines can significantly enhance both the performance and longevity of the system, minimising potential risks and ensuring a safe working environment.

Most car hoists demand a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it facilitates the even distribution of weight from both the vehicle and the hoist, thus reducing the likelihood of any potential cracking or sinking over time. For more heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal performance and safety during usage.

Comprehensive Steps to Accurately Assess the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a critical factor in the safe installation and operation of a car hoist. Several important aspects must be considered when determining the appropriate depth for your slab to ensure it can adequately support the loads it will endure during usage. Understanding these factors can prevent costly mistakes and significantly enhance the safety of your garage setup, allowing you to operate your hoist with confidence and peace of mind.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, it is essential to understand the total weight your concrete floor needs to support. This assessment involves not only the weight of the vehicle but also the weight of the hoist itself, which can add substantial load to the floor. In addition, it’s wise to account for any additional equipment or tools that may be used alongside the hoist, ensuring a safe lifting environment.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an extra 500 to 1,000 kg. Furthermore, it is prudent to include a safety buffer by factoring in extra weight to accommodate unforeseen circumstances, thereby ensuring that the structure remains capable of supporting the load safely.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan on lifting substantially heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during operation. Engaging with a structural engineer is a wise decision, as they have the expertise to deliver tailored advice and assist you in calculating the precise thickness needed based on your unique circumstances and requirements.

Investigating Various Types of Car Hoists and Their Specific Concrete Thickness Needs

It is vital to recognise that different types of car hoists have unique requirements concerning concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners looking to incorporate a car hoist into their garage. Understanding the differences between these options can aid in making an informed decision that suits your needs.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This is crucial to prevent any structural issues that may arise from uneven weight distribution.

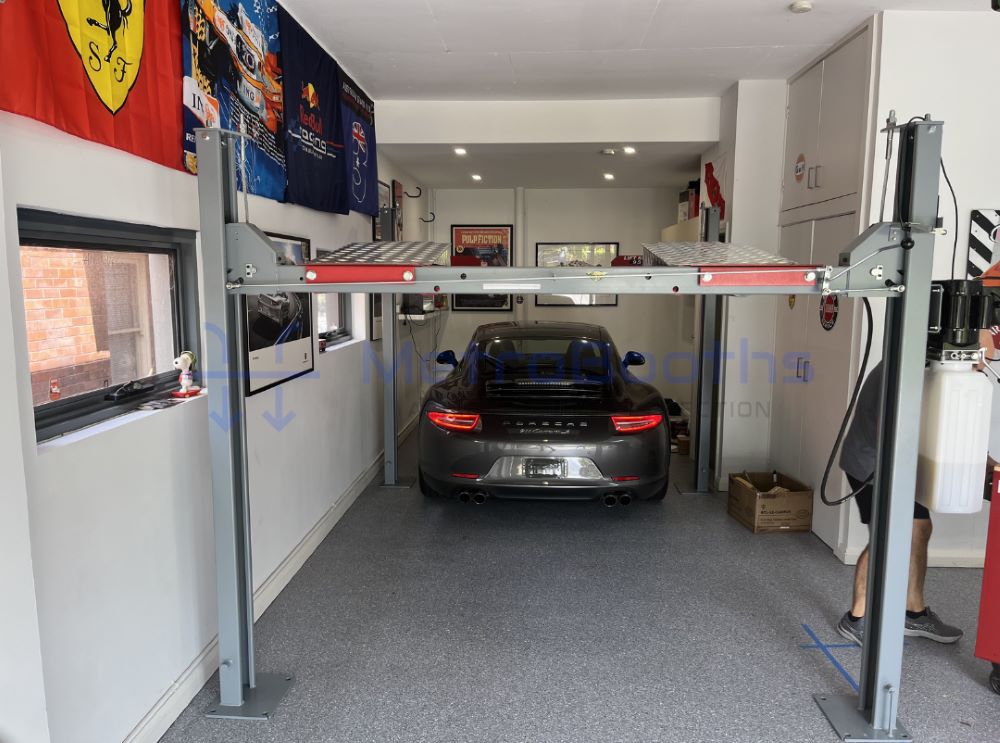

Conversely, four-post lifts tend to distribute weight more evenly over a larger area, enabling them to operate efficiently with a slightly thinner slab, typically within the range of 100 mm to 125 mm. This understanding plays a significant role in your planning and installation process, as it can directly impact the performance and safety of the hoist.

Always consult the manufacturer's specifications for the hoist you are considering, as they will usually specify the minimum concrete thickness required for safe operation. Adhering to these guidelines is critical for achieving optimal performance and longevity of your car hoist system.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift, so it is advisable to conduct thorough research and possibly seek professional guidance.

Recognising the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is as important as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing sufficient support for heavy loads. This aspect is particularly relevant in the context of a car hoist installation, where safety and durability are paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty usage and frequent vehicle lifting. This ensures that the concrete can withstand the rigours of regular operation.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could allow you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation, thereby optimising your installation.

For the majority of home garages, SL82 mesh presents a reliable option, providing sufficient strength for most car hoists without incurring excessive costs. This consideration is vital for budget-conscious homeowners looking to achieve a balance between quality and affordability.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation and ensuring your investment remains protected.

Fundamental Installation Factors for Achieving Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and ensuring the safety of users.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is imperative to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, thereby avoiding any complications during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete, as this could lead to structural failures. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide recommendations.

Crucial Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could subsequently affect the functionality of your hoist. This proactive approach is vital to maintain safety and performance.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues if left unattended. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining a safe working environment.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage of the hoist over time.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Frequently Asked Questions Regarding Car Hoist Installation and Concrete Thickness Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, aiming to provide clarity and guidance for prospective hoist owners.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, ensuring that you comply with safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing peace of mind and ensuring optimal safety during use.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, thereby ensuring compliance with safety regulations.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, particularly when lifting larger and heavier vehicles.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that you are fully informed about the capabilities of your installation.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency. Our team is dedicated to providing you with the best possible support for your car hoist installation needs.
