Shed Wiring Tips for Electricians in Countryside Locations

If you own a shed located on a substantial acreage and are tired of managing extension cords from your home, it is essential to ensure your shed is properly wired. Whether you need a basic storage shed with just a light and a power outlet, or a fully equipped workshop that supports tools like welders and compressors, adhering to the correct procedures is crucial. In NSW, the only legal way to achieve this is by hiring a licensed electrician who can guarantee safety and compliance.

This comprehensive guide provides the vital steps necessary to electrify your shed, detailing what your electrician will require for the installation and offering an estimate of the costs involved in the Mid North Coast.

Maximise Your Shed's Electrical Efficiency: A Comprehensive Guide to Cable Runs

The foremost consideration for any shed wiring project is ensuring the effective transfer of power from your main switchboard to the shed itself. On larger properties, this distance can extend to 30, 50, or even over 100 metres. The longer the distance, the larger the cable diameter needed to effectively manage voltage drop without compromising performance.

When planning cable runs, you have two primary options to consider:

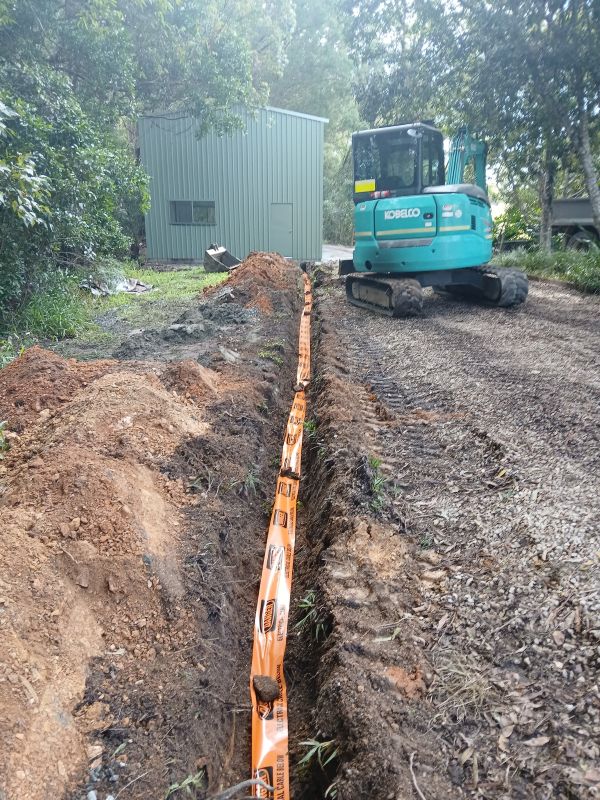

• Underground cable run — This is the most common and visually appealing option. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas where heavy vehicles frequently pass. This method protects the cable from harsh weather conditions, wildlife interference, and falling branches, making it the preferred choice for many properties with substantial acreage.
• Overhead cable run — While less common, this option may be necessary in areas with solid rock or complicated terrain that makes trenching difficult. Overhead runs must adhere to specified clearance heights and require support poles, which can significantly escalate costs.

For the majority of properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is generally the most recommended approach. Your electrician in Bellingen can evaluate your site and propose the most effective route for the installation.

Establishing a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

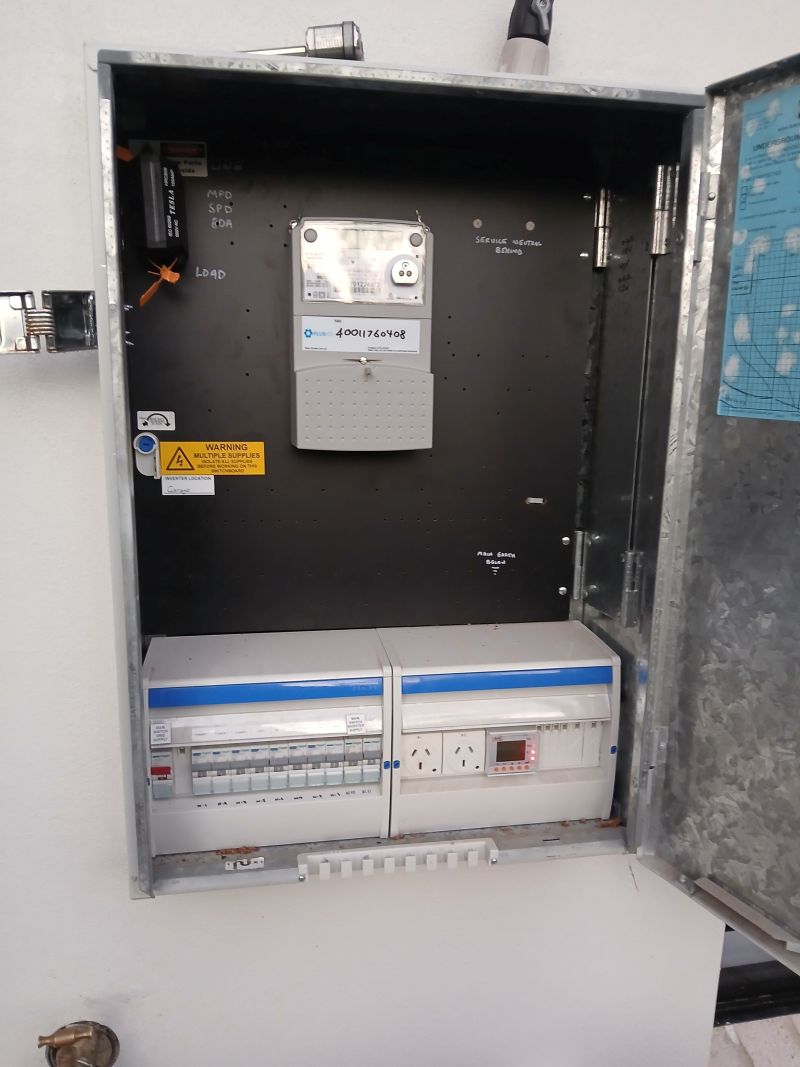

Merely running a single cable to the shed and plugging in appliances is insufficient. Any shed equipped with a proper power supply must feature a dedicated sub-board, commonly known as a distribution board. This device acts as a mini switchboard within the shed, efficiently managing all circuits and ensuring safety.

Your sub-board will typically consist of the following essential components:

• Main switch — This component allows you to isolate all power to the shed independently from the main house, significantly enhancing safety and control during maintenance or emergencies.
• RCDs (Residual Current Devices) — As mandated by NSW electrical regulations, these devices provide rapid power cut-off in milliseconds in the event of a fault. This feature is crucial for safety in a shed environment where moisture, dust, and potentially damaged leads are common.
• Circuit breakers — These devices provide individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring that a fault in one circuit does not affect others.

If your house's switchboard is outdated, your electrician may also recommend upgrading it to effectively accommodate the additional load directed to the shed.

What Key Features Should Be Installed Inside Your Shed for Maximum Functionality?

The specific installations that your electrician implements within the shed will largely depend on its intended purpose. Here’s a detailed overview of typical setups for various applications.

Creating an Efficient Basic Storage Shed Setup

If your shed primarily functions as a storage area for tools, a ride-on mower, or other equipment, consider incorporating the following features:

• LED batten lights — One or two ceiling-mounted LED batten lights will provide effective illumination for the entire area. Your electrician can offer recommendations on the optimal lighting arrangement based on the shed's dimensions and layout to ensure maximum visibility.
• Two to four general power points — These will adequately support plugging in a charger, a radio, or a drop saw when needed. Expect standard power points and switches to operate on a single circuit for simplicity.
• External light — A weatherproof LED light mounted above the door will guarantee visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Designing a Fully Equipped Powered Workshop Shed

If you often utilise power tools such as drop saws, bench grinders, and dust extractors, a more sophisticated wiring configuration is essential:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent issues such as flickering lights whenever a tool is activated, ensuring a smoother workflow and a safer working environment.
• Higher-rated power points — Installing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively and safely.

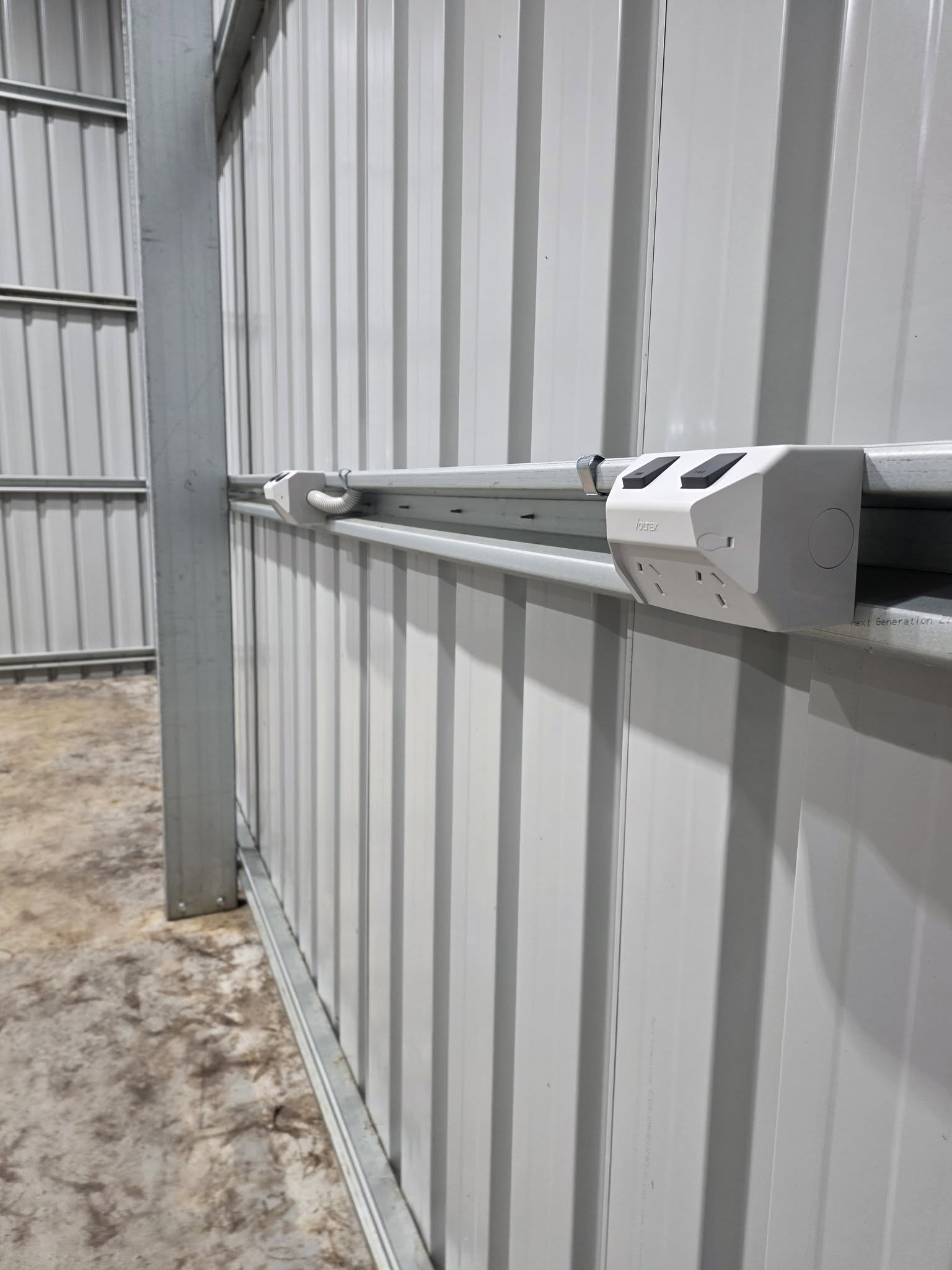

• Strategically placed additional power points — Ensure outlets are installed at bench height rather than just at skirting level, taking into account the actual positions of your workbenches to enhance accessibility and efficiency during use.

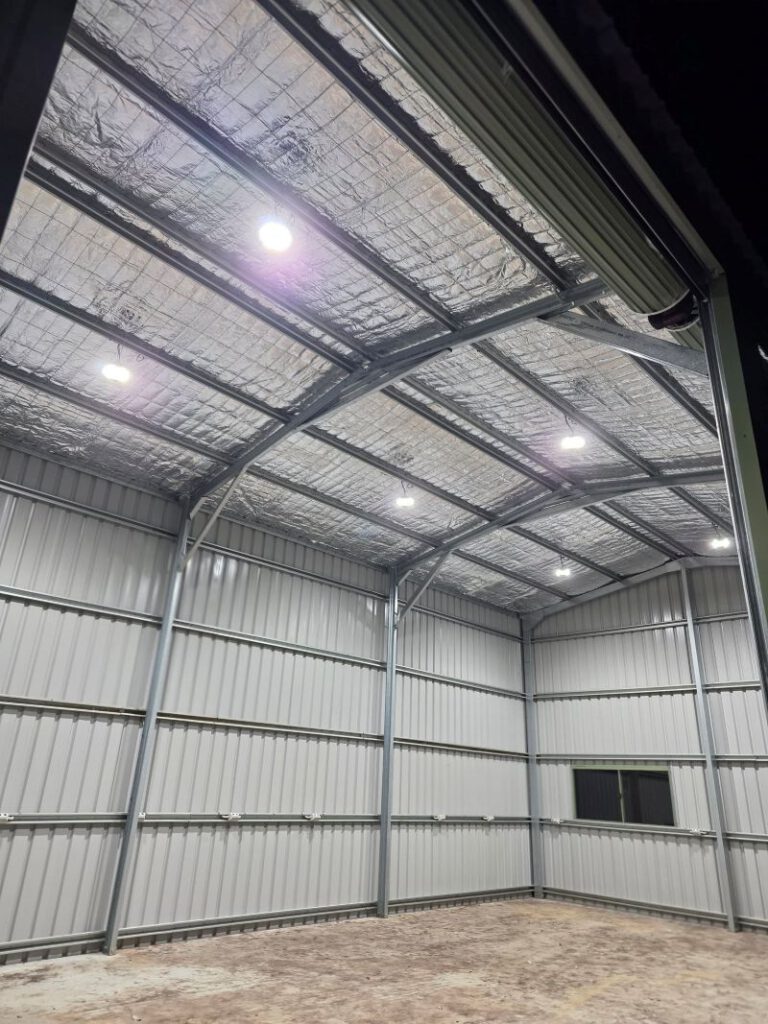

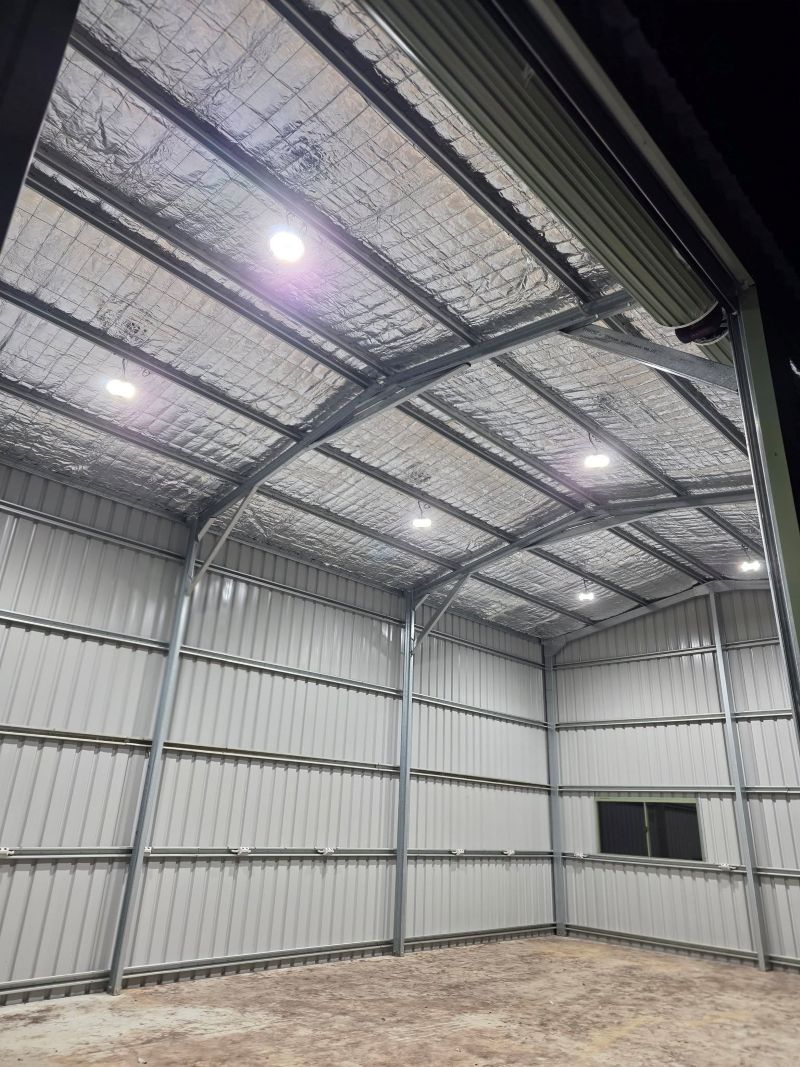

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during detailed tasks, making your workspace more functional.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which offers valuable insights.

Establishing a Comprehensive Workshop With a Three-Phase Power Supply

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying on single-phase power may not suffice. In such cases, considering three-phase power is highly advisable.

Three-phase power offers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast due to processing times.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance with local electrical standards.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more expensive, especially over long distances due to the materials and labour involved.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safe and efficient operation.

If you are uncertain whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will be sufficient. We also provide complete installations for three-phase switchboards should you opt for that route.

Why Surge Protection is Essential for Your Shed's Safety?

Properties situated on acreage in the Mid North Coast often experience severe lightning storms. A direct or nearby lightning strike can cause significant damage to everything contained within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power.

Installing a high-quality surge protection device within the sub-board serves as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment. For sheds housing expensive tools or workshop setups, surge protection is an absolute necessity to protect your investments against unexpected electrical surges.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and the house) to seamlessly switch to generator power safely during outages, thus ensuring continuous operation.

What Are the Regulations for Council Approval and Compliance in NSW?

There are several critical regulations that you need to be aware of:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to cut down on labour costs, all electrical tasks—including cabling, connections, sub-board installation, and other related work—must be conducted by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation efficiently, ensuring that all work complies with safety standards.
• If the shed is newly constructed, development approval may be required depending on your council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project might require it.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every project we complete includes a compliance certificate to ensure safety and legality, providing peace of mind for our clients.

Estimating Shed Wiring Costs on Acreage: What to Expect

Each shed presents unique challenges—factors like distance from the home, the need for single-phase or three-phase power, the number of circuits required, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast region:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+

Longer cable runs (50m+), rocky terrain requiring a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable way to receive an accurate estimate is to have your electrician conduct a site visit, assess the cable route, and understand the intended use of the shed to tailor the quote accordingly.

For a personalised quote based on your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Frequently Asked Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be carried out by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant risks. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards for safety and compliance.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more to prevent damage. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with all safety regulations.

Do I Need a Separate Meter for My Shed?

In most cases, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is used as an independent dwelling or commercial premises, which will require further discussions with your council and your energy distributor to ensure compliance.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin, affecting the overall timeline.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load requirements. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are adequate from the outset, rather than making subsequent additions which could lead to complications and increased costs.

Guarantee Safe and Efficient Wiring for Your Shed

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it consists of a simple light-and-power setup or an extensive three-phase workshop.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your needs, ensuring a smooth and safe installation process.
