Solar Switchboard Upgrade for Battery and Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Enhancing the switchboard
Result: A comprehensive single-phase switchboard upgrade that accommodates a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—without needing a three-phase upgrade.

Choosing Precision Electrical & Air for Your Essential Switchboard Upgrade

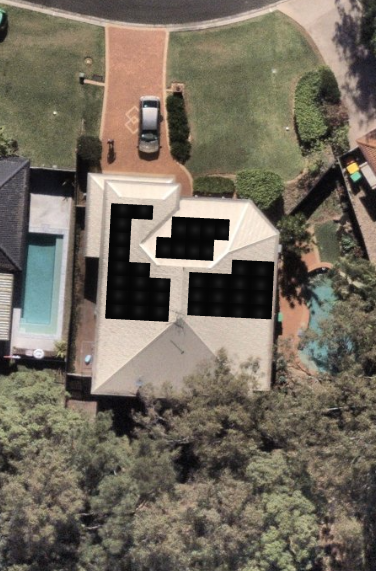

This homeowner in Chelmer undertook a significant renovation project, which included the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire residence. Additionally, the overall plan incorporated a new ducted air conditioning system, enhancing comfort and efficiency. Before connecting these advanced systems, it was vital to assess and upgrade the existing switchboard to ensure compliance with the latest safety standards and effectively manage the increased electrical loads that these installations would introduce.

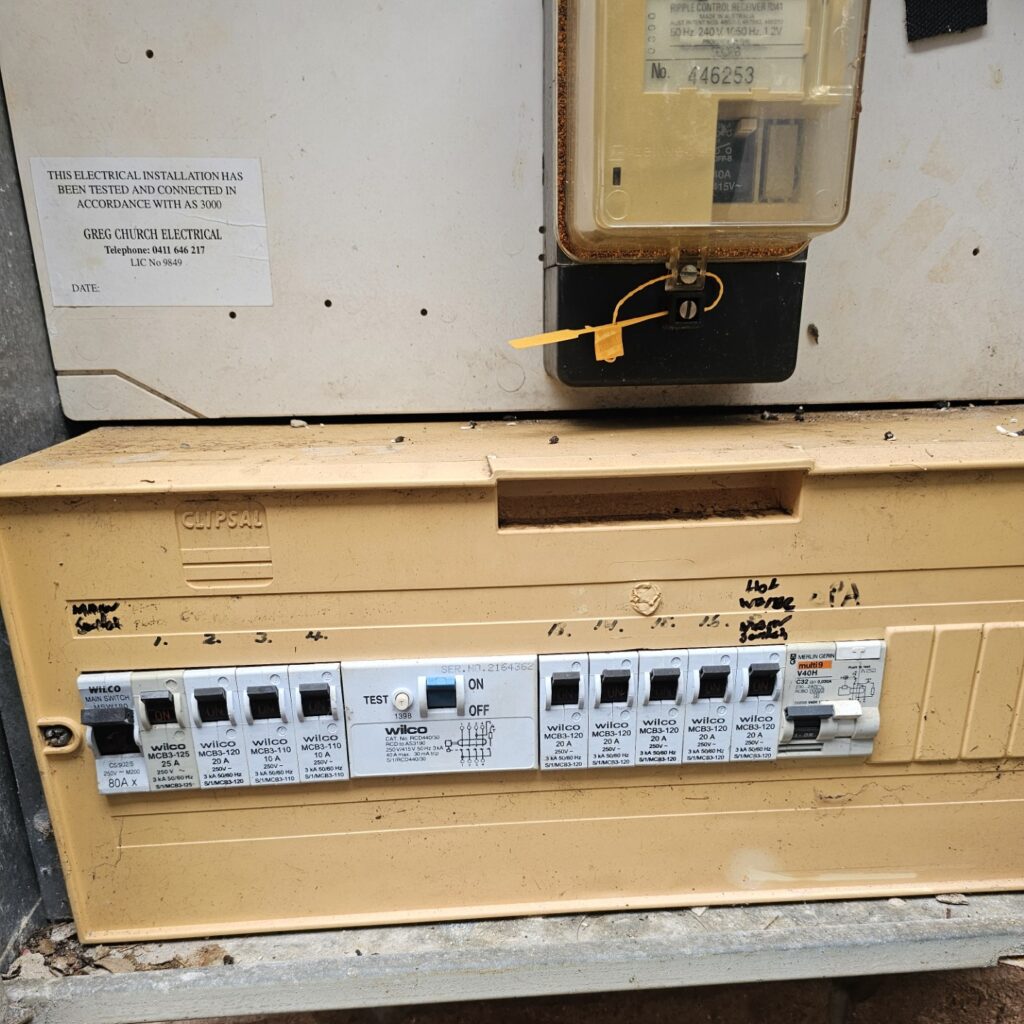

Upon inspection, the original switchboard was found to be outdated, equipped with obsolete circuit breakers, and featured only a single Residual Current Device (RCD) that provided protection for the entire property. This configuration was inadequate for supporting solar energy integration and battery storage. Furthermore, the poor circuit labeling rendered it non-compliant with modern standards governing contemporary energy generation systems. This lack of compliance presented a significant risk to the efficient operation of the newly upgraded systems and could potentially lead to safety hazards.

Is a Three-Phase Upgrade Truly Necessary for Your Electrical System?

When examining the specifications of a 17.86kW solar system combined with a 30kWh battery, it is a common misconception that a three-phase upgrade is essential. This misunderstanding can result in significant financial implications for homeowners, potentially leading to costs ranging from £3,500 to £6,000, as well as a prolonged wait for approval from Energex for network modifications. Understanding the true requirements of your electrical system is crucial for making informed financial decisions.

In-Depth Initial Technical Assessment Conducted to Ensure Compliance

Two key factors were pivotal in determining whether a three-phase upgrade was genuinely necessary for this property. Firstly, the supply cable for the residence was strategically located near the street junction, which allowed the voltage rise calculation for solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are specifically designed to reduce demand on the grid rather than increase it, there was no technical justification from the network's perspective for the need for a three-phase upgrade. This analysis also confirmed that the ducted air conditioning system adhered to the essential parameters for efficient single-phase operation. Therefore, it was decided to maintain the single-phase configuration.

Consequently, the switchboard was upgraded to ensure it could safely and effectively handle all new electrical loads without compromising safety or compliance with regulatory standards. This decision not only enhanced the system's efficiency but also provided peace of mind to the homeowner regarding the safety and reliability of their electrical setup.

Comprehensive Examination of Installed Components for Enhanced Safety and Compliance

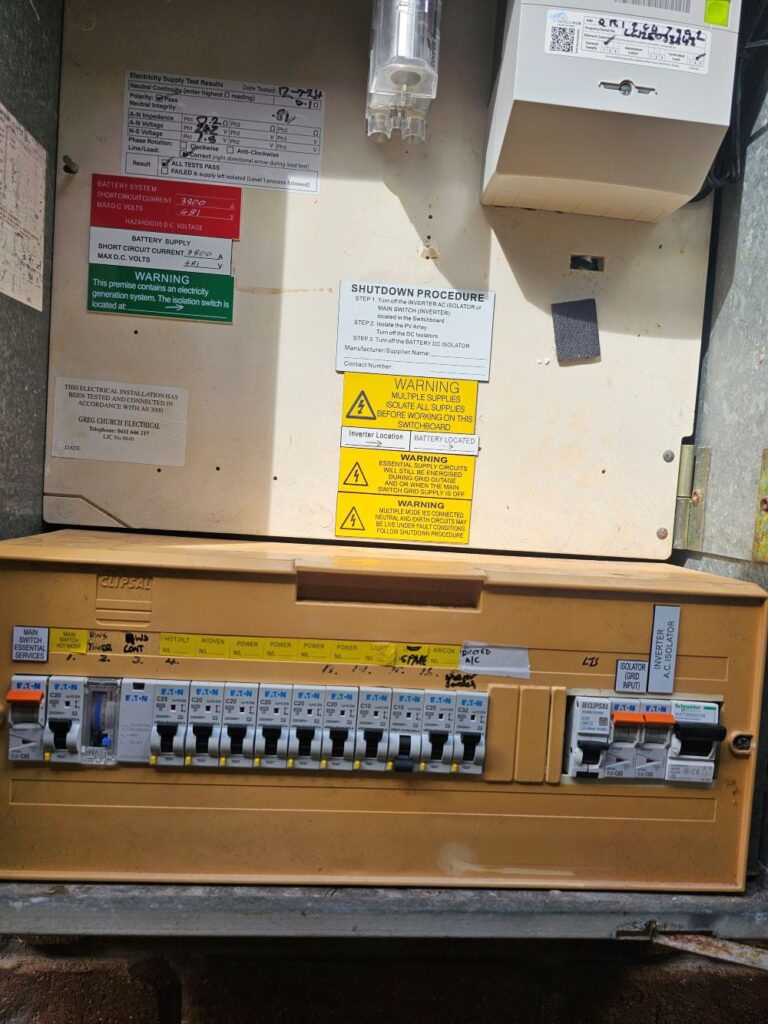

The existing switchboard underwent a meticulous dismantling and thorough reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units sourced from Eaton, and each breaker was meticulously labelled for easy identification. The circuits were carefully separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with current regulations. This systematic approach not only improved safety but also enhanced the overall functionality of the electrical system.

A timer was integrated into the hot water service to guarantee its efficient operation during peak solar generation hours. This strategic addition significantly reduces dependence on the grid by optimising the use of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure proper functionality and efficiency, contributing to a more sustainable energy solution for the household.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were thoroughly conducted and documented for the switchboard, ensuring compliance with the latest Australian standards and a reliable electrical service for the property.

Homeowner Realises Benefits from the Successful Switchboard Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard capable of safely supporting their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenditures related to a three-phase upgrade that was not essential for their specific circumstances. This successful upgrade not only enhances the property's energy efficiency but also provides significant long-term savings on electricity costs.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be crucial in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property. This assessment will ensure you have all the necessary information to make an informed decision regarding your electrical system.

We assure you that no upselling occurs; you will receive an accurate evaluation tailored to your home’s specific needs.

Your Frequently Asked Questions Fully Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment relies on two primary factors: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes essential to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters. This ensures the safe and efficient operation of both the solar system and the overall electrical network.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not dictate the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are added to the property. Key considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels. Understanding these factors is essential for determining the appropriate electrical configuration for your home.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors like Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance stays within this limit to ascertain whether single-phase or three-phase power is suitable for your property. This careful evaluation ensures compliance with safety standards and optimal performance of your solar energy system.
